730 W Bifacial N-Type Solar Photovoltaic Panels for Half Cell Solar Panel System

Brand Name : OEM

Model Number : See details

Place of Origin : Hubei, China

Cell size : 182mmx210mm

Type : Half Cell

Panel Dimensions : 23848*1303*35mm(938.90*51.30*1.38in)

Panel Efficiency : 22..5%, 22.5%

Application : Solar Panel System

Certificate : CE,TUV,CQC

Warranty : 25 Years

Solar cell : 144 Cells

OEM Order : Acceptable

Color : Customized Color

Packing : Wooden Case

MOQ : 22630 watts

Price : $0.12 / watt

Contact Now

730 W Bifacial N-Type Solar Photovoltaic Panels for Half Cell Solar Panel System

730 w N-type bifacial solar photovoltaic

Maximum power (bifacial) 730 w

Maximum power voltage (vmp) 38.98v

Maximum power current (I mp) 17.45A

Open - circuit voltage (voc)

short -circuit current (ISC) 18.66A

Module Efficiency STC(%) 23.5%

Products Description

Advantage:

Product packaging

Certifications

Company Profile

Wuhan Huanghe Xingyu Electric Appliance Co., Ltd. was established in October 1998. It is an innovative high-tech enterprise specializing in the research and development of solar hot water engineering, solar power generation engineering, air energy hot water engineering, and new energy technology in the new energy industry. Has a number of new patents and software registration certificates. The company cooperates with universities and scientific research teams to carry out research and innovation on products and technologies, injecting strong vitality and vitality into the enterprise. The company has an advanced management system and a complete after-sales service network.

FAQ

Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU).
Q3: What about the lead time?
A3: 7days for sample order,15 days for small order,and need be negotiated for big orders.
Q2: How can I make payment?
A2: 100% TT or 30%TT in advance and 70% TT or LC at sight before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, also can be air transport and express delivery.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please
refer to our limited warranty statement
Q6. what services can we provide?
A6:Accepted Delivery Terms: FOB,CIF,DDP,EXW
Payment Currency:USD,EUR,CNY
Payment Type: T/T,L/C

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Products Description

Electrical Characteristic
Rated output (Pmp/Wp)	520W	525W	530W	535W	540W	545W	550W	555W	560W
Open Circuit Voltage(Voc)	48.9	49.05	49.20	49.35	49.50	49.65	49.90	50.05	50.20
Short Circuit Current(Isc)	13.57	13.65	13.71	13.78	13.85	13.92	14.00	14.07	14.14
Maximum Power Voltage(Vmpp)	41.05	41.20	41.35	41.50	41.65	41.80	41.96	42.12	42.28
Maximum Power Current(Impp)	12.67	12.79	12.82	12.90	12.97	13.04	13.11	13.18	13.25
Module efficiency(%)	20.3%	20.5%	20.7%	20.9%	21.1%	21.3%	21.5%	21.7%	21.9%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
Mechanical Characteristic
No.of Cells			144(6x24)
Weight			32.3kg
Dimension			2256x1133x35mm
Junction Box			IP68,three diodes
Output Cables			4mm2,positive 400mm /negative 200mm ,length can be customized
Glass			Dual glass,3.2mm coated tempered glass
Frame			Anodized aluminum alloy frame

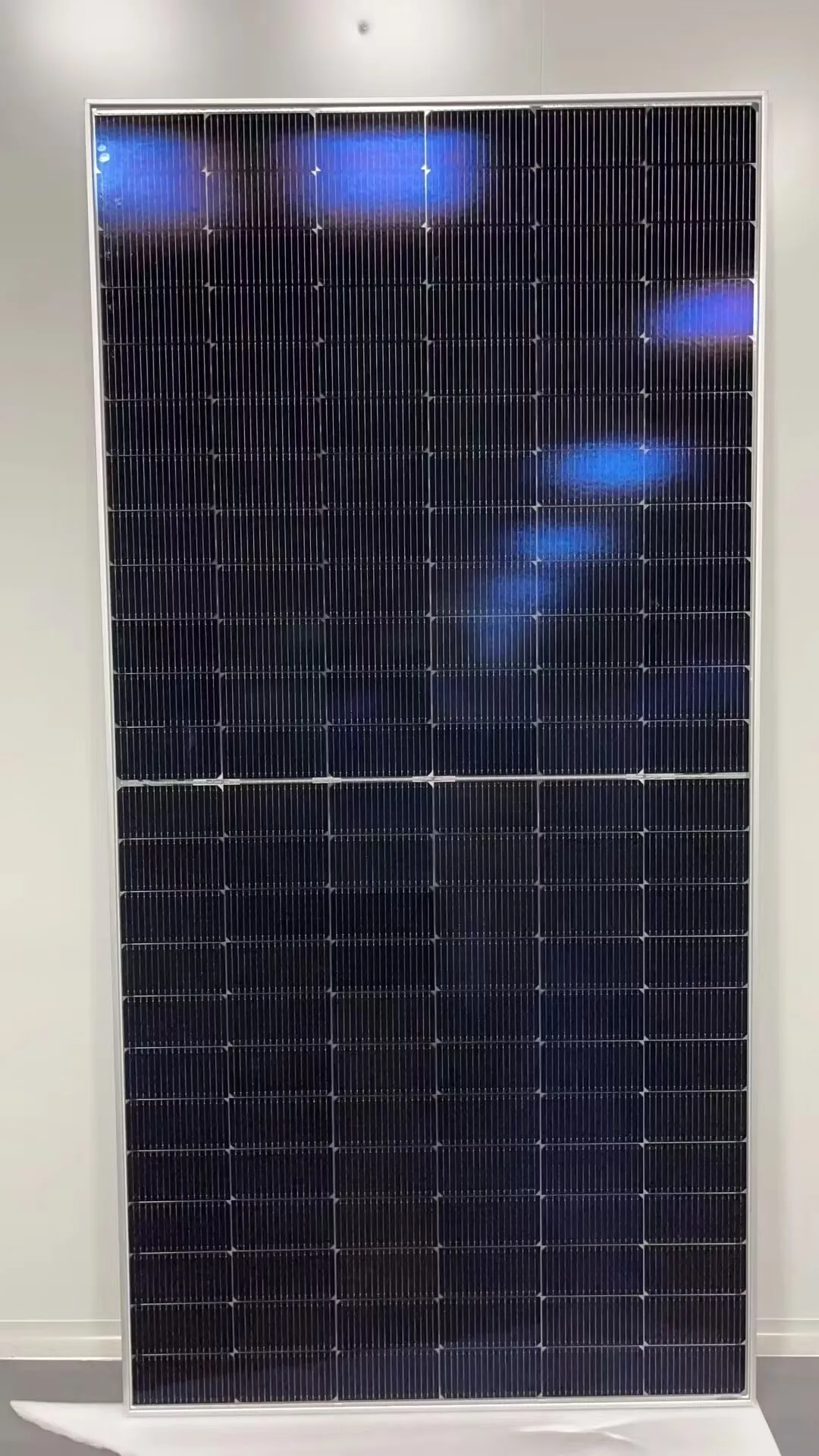

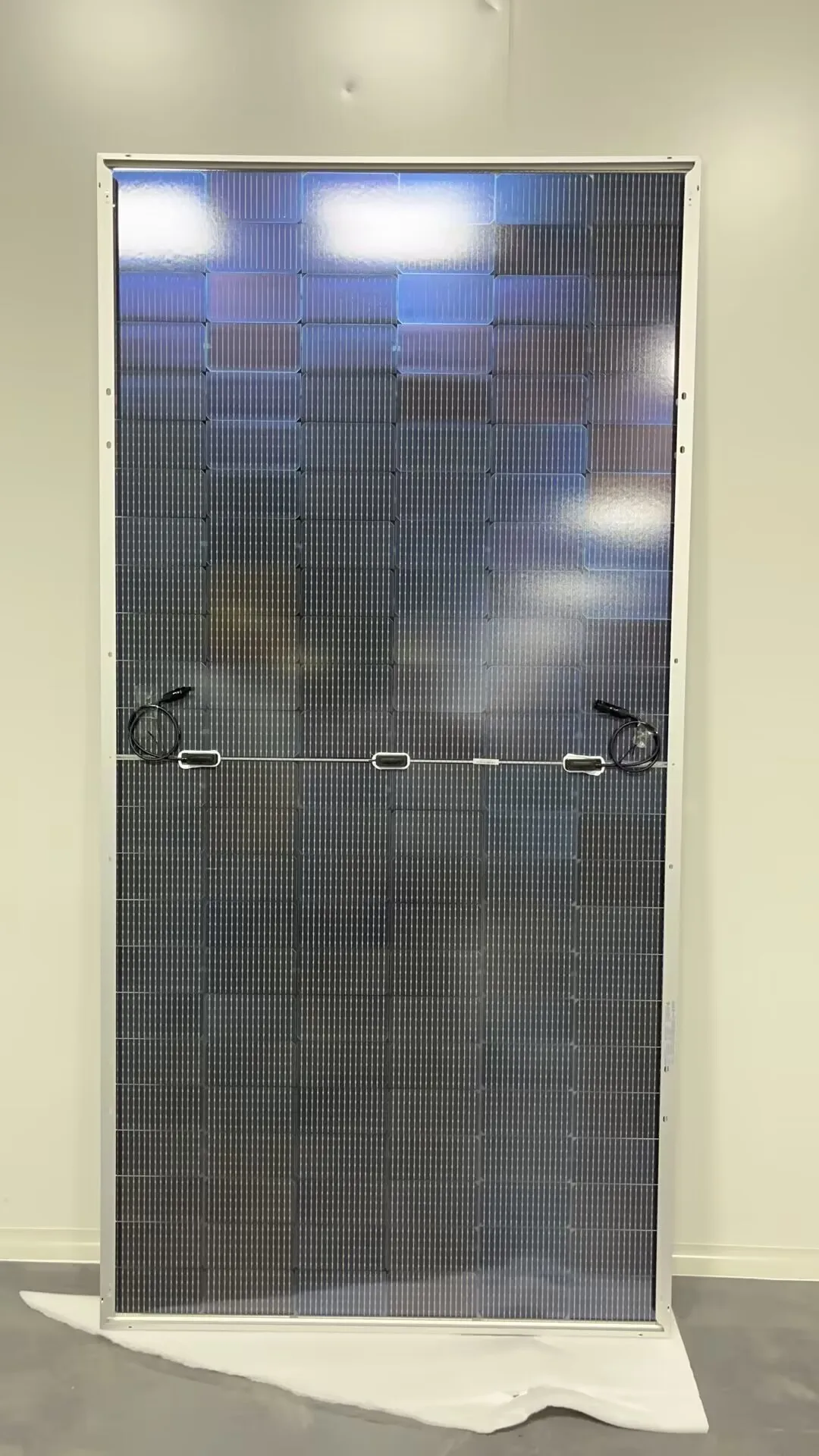

730 W Bifacial N-Type Solar Photovoltaic Panels for Half Cell Solar Panel System Images
